Gyroscopic Mixer
MX1 Semi-Automatic Mixer
Simple & Robust
Designed for basic to medium mixing requirements in retail shops. Simple design, easy operation, and low maintenance.
Engineered Excellence
The MX1 is the latest addition to MASTRIQ’s paint mixer portfolio, ideal for basic to medium mixing requirement for retail shops. Simple design and easy to operate machine has an easy manual clamping system which requires little effort to clamp paint cans. The sturdy design is suitable for various point of sale mixing applications and assures minimum cost of maintenance over the period of time. MX1 comes with features like safety door switch, sliding door, emergency stop button and an adapter for can sizes starting from 500ml to 4 ltr.
Gallery

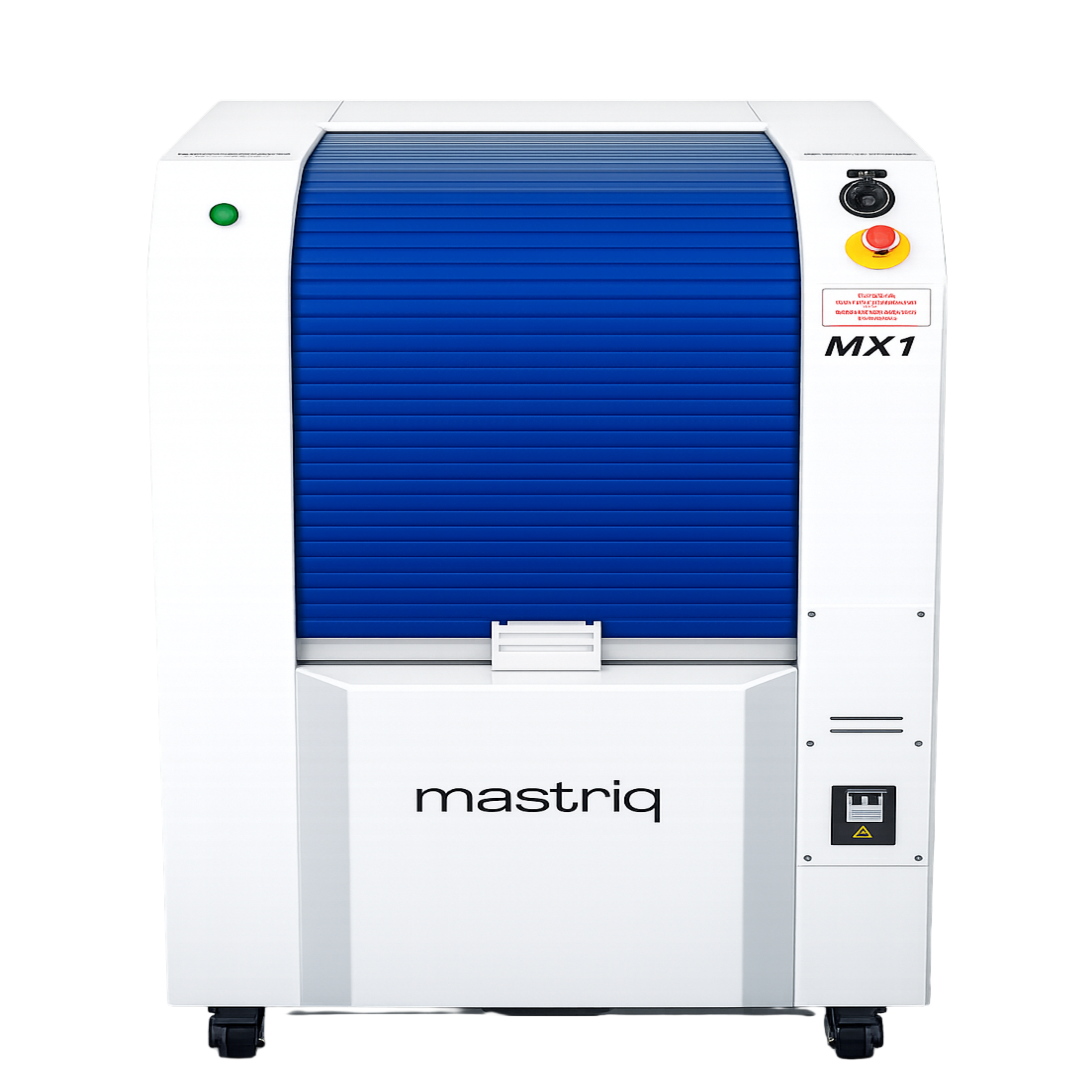

/mx1/MX1_1.webp)
1/3
Technical Specifications
| TYPE | Gyroscopic |
|---|---|
| MAXIMUM CAN HEIGHT | 70 – 400 mm |
| CLAMPING CLEARANCE | 415 mm |
| MAXIMUM CAN DIAMETER | 60 – 275 mm |
| MAXIMUM CAN WEIGHT | 35 Kg |
| CAN CLAMPING | Manual |
| CAN HOLDER ASSEMBLY LOCK | Available |
| DOOR | Plastic Shutter with Metal Bars |
| EMERGENCY SWITCH | Available |
| DOOR LOCK WHILE RUNNING | Available |
| TIMER | Mechanical (up to 5 min) |
| ROTATION DIRECTION | Anti–Clockwise |
| MAIN MOTOR | 1 HP, 1425 rpm (230V) or 1725 rpm (115V) |
| SPEED | (115V) Single Speed |
| RPM | • Can Holder Assembly – 120 rpm • Bottom Plate – 240 rpm |
| MAXIMUM NOISE LEVEL | 55 dB |
| POWER SUPPLY | 220 V / 50 Hz | 110 V / 60 Hz |
| MAXIMUM MACHINE SIZE | 840 W × 680 D × 1075 H mm |
| MACHINE NET WEIGHT | 144 Kg |
| SHIPPING SIZE | 965 W × 890 D × 1320 H mm |
| GROSS WEIGHT | 175 Kg |
