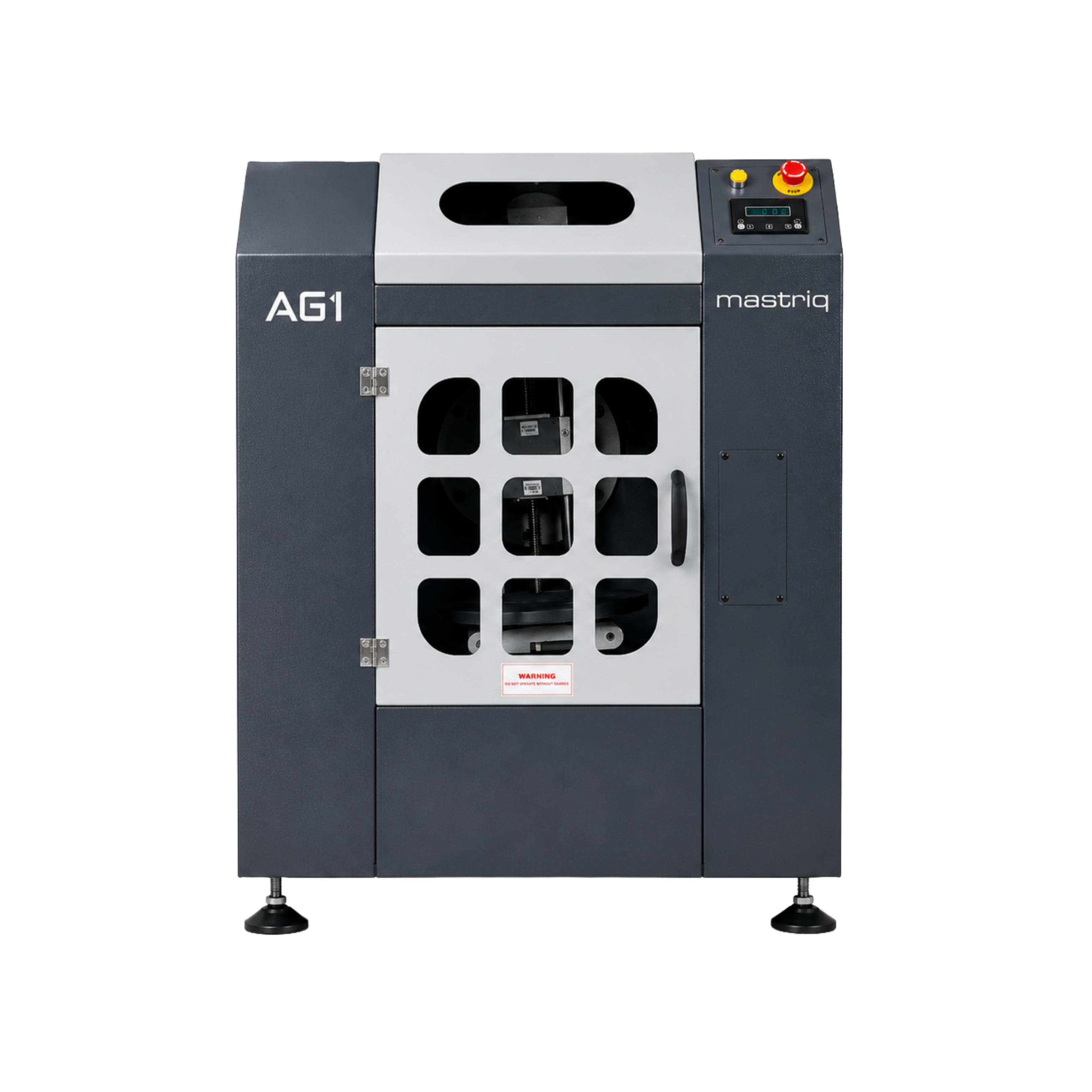

AG1 Automatic Gyroscopic Mixer
AG1 fully Automatic Gyroscopic Mixer is MASTRIQ's latest addition to its paint mixer family. Specifically designed for mixing highly viscous paints. A simple and durable mixer with great ergonomics and ease of use. Equipped with a pullout bottom disc for easy loading.
/ag1/AG1_1.webp)
Engineered Excellence
The AG1 fully automatic gyroscopic mixer brings unmatched robustness and simplicity to professional paint shops. Designed to handle the most demanding mixing tasks, it delivers consistent results even with highly viscous paints.
Bi-directional movement ensures faster and more homogeneous mixing, while the pull-out tray and slotted rubber bottom plate make can loading effortless and secure.
Advanced features include built-in voltage fluctuation protection and automatic vertical positioning — guaranteeing reliable operation and prolonged machine life even in unstable power conditions.
The sturdy mechanics and thoughtful design minimize maintenance, making AG1 the ideal choice for medium to high‑volume retail environments.
Gallery
/ag1/AG1_1.png)
Technical Specifications
| TYPE | Fully Automatic Gyroscopic Mixer |
|---|---|
| MIXING DIRECTION | Bi-directional (automatic reversing) |
| TIMER | Digital programmable (0–99 min) |
| MAIN MOTOR | 1 HP, 1425 rpm (230V) / 1725 rpm (115V) |
| MAXIMUM CAN HEIGHT | 400 mm |
| MAXIMUM CAN DIAMETER | 350 mm |
| MAXIMUM CAN WEIGHT | 40 Kg |
| CAN CLAMPING | Automatic vertical positioning + slotted rubber base |
| PULL-OUT TRAY | Yes, heavy-duty sliding disc |
| VOLTAGE FLUCTUATION PROTECTION | Built-in (wide voltage tolerance) |
| DOOR & SAFETY | Shutter door with interlock, emergency stop |
| MAXIMUM NOISE LEVEL | ≤ 60 dB |
| POWER SUPPLY | 230V / 115V, 50/60 Hz (single phase) |
| MACHINE DIMENSIONS (W × D × H) | 850 × 750 × 1100 mm |
| SHIPPING DIMENSIONS (W × D × H) | 950 × 850 × 1250 mm |
| NET WEIGHT | 180 Kg |
| GROSS WEIGHT | 205 Kg |
| STANDARD ACCESSORIES | Slotted rubber plate, adapter rings, tool kit |
